Specifications verified under documented load conditions.
Each unit ships with component-level test results and tolerance ranges drawn from controlled facility runs—not manufacturer estimates. Evaluate exactly what you are procuring.
Full specification, every interface listed.
Interface standards, tolerance ranges, and compatibility data are documented alongside each unit—so integration into your existing infrastructure is an engineering decision, not a guess.
Industrial Control Module
Signal Conditioning Unit
Edge Processing Unit
Operating range: -40°C to +85°C. Input voltage: 18–36 V DC. Interface: RS-485, CAN 2.0B, Ethernet (10/100). Tolerance: ±0.5% full-scale verified at rated load.
Sampling rate: 1 kHz per channel. Channels: 8 differential. Output: 4–20 mA isolated. Linearity error: <0.1% FSR across documented temperature sweep.
CPU: quad-core ARM Cortex-A55 @ 1.8 GHz. RAM: 4 GB LPDDR4. Storage: 32 GB eMMC. I/O: 4× USB 3.0, 2× GbE, PCIe Gen 3 expansion slot.

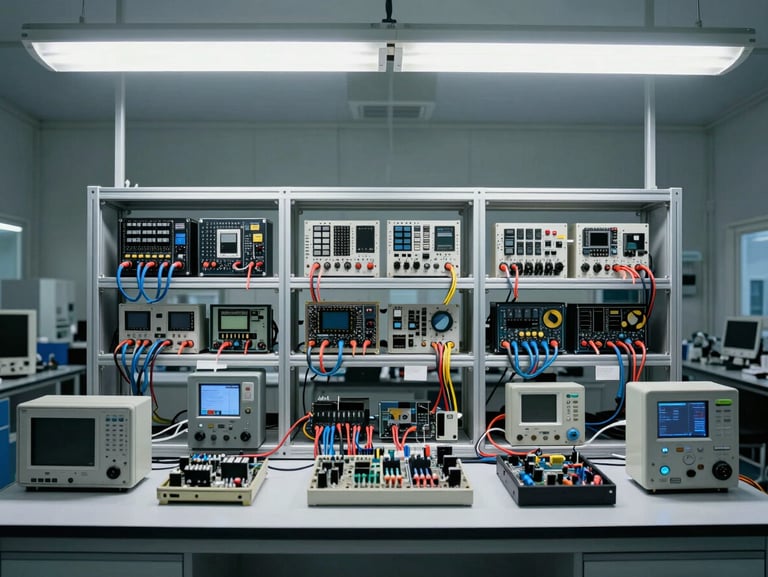

Results from controlled facility runs.
Performance figures shown on this page are drawn from repeatable test cycles conducted at rated load, ambient temperature variance logged per run. No best-case projections.
Each product iteration is tested against the previous version's baseline. Regression data is retained and available alongside the current datasheet on request.
Need the full component-level documentation?
Datasheets include tolerance tables, interface pinouts, and test logs from every documented iteration. Routed directly to the engineering team.
